The Alpine Park Model RV

Welcome to the Alpine Park Model RV. Like all of our park model homes, this Alpine Park Model home is built to the ANSI 119.5 standard and comes with an RVIA seal, meaning the Alpine has been manufactured in compliance with more than 500 safety requirements, including fire safety, electrical, plumbing, and heating codes. It also comes with a 20-gallon water heater as well as dual 9,000 BTU AC & Heat Wall Mount Ductless Mini Split units. And when you step inside this beautiful Alpine Park Model RV, you’ll quickly see why this could be your go-to vacation home as a couple or small family.

Be Inspired

Alpine Park Model RV Photo Gallery

Get Pricing
Floor Plans
  • exterior of Alpine Park Model RV
  • Untitled Artwork
  • Untitled Artwork
  • Alpine Park Model RV Bathroom with soaking tub
  • Untitled (940 × 600 px) (909 × 600 px) 1
  • Alpine Park Model RV Bedroom

The Alpine Park Model RV Specifications

General Specs:

  • 11×36 Park Model = 396 sq.ft.
  • RVIA Seal, built to the ANSI 119.5 Standards

Exterior Features:

  • Trailer: Heavy duty steel, 3-axle chassis with detachable hitch
  • Exterior siding: matte black corrugated metal
  • Metal Roof: matte black corrugated metal
  • 2/12 Pitch roof
  • 70lb Snow load roof system
  • Cedar rain screen accent with penofin verde natural oil sealer
  • 26 Gauge sheet metal on underside of trailer
  • Insulation: walls/floors/ceiling R16 closed cell spray foam
  • Walls 2×4 studs
  • Floors constructed of 2×6 joists spaced 16” on center with ¾” OSB subfloor
  • 7/16” OSB wall sheathing
  • House wrap
  • Pella Impervia series windows and doors. Black exterior/interior color
  • (5) Recessed porch lights and (2) GFI exterior outlets
  • Water inlet: standard garden hose connection
  • Sewer connection (1-main drain, 3” PVC pipe)
  • 100 Amp hardwired electrical service

Interior Features:

  • Engineered hardwood flooring
  • All light fixtures, ceiling fan, outlets and switches included
  • Dual head ductless mini split units, 9k per head
  • Life safety kit in each home includes smoke/CO detectors and fire extinguisher
  • Walls and ceiling finished in ½” C2 birch plywood, primed and painted
  • Smooth flat panel interior doors
  • Flat 1×3 window trim primed and painted

Kitchen & Bath Features:

  • Birch kitchen and bathroom cabinets with flat panel doors and drawer fronts, with full extension soft close drawers, and soft close doors
  • Quartz countertops in kitchen and bathroom
  • 2 burner electric cooktop
  • 10 cu. ft. counter-depth refrigerator
  • Rheem 20 gallon electric water heater
  • 1.6 Cubic ft microwave with cabinet above cooktop
  • 4’ fiberglass shower base with tile surround and glass shower door
  • Elongated comfort height toilet
  • Bathroom exhaust fan
  • Matte black AKDY free standing tub
  • All plumbing included with water lines in walls for colder climates
  • Kitchen sink: single bowl 22” stainless steel sink
  • Bathroom sink: white vessel sink
  • Delta premium faucets
  • Large storage cabinet in bathroom
What will you do with your Alpine Park Model RV?

Customer Project Stories

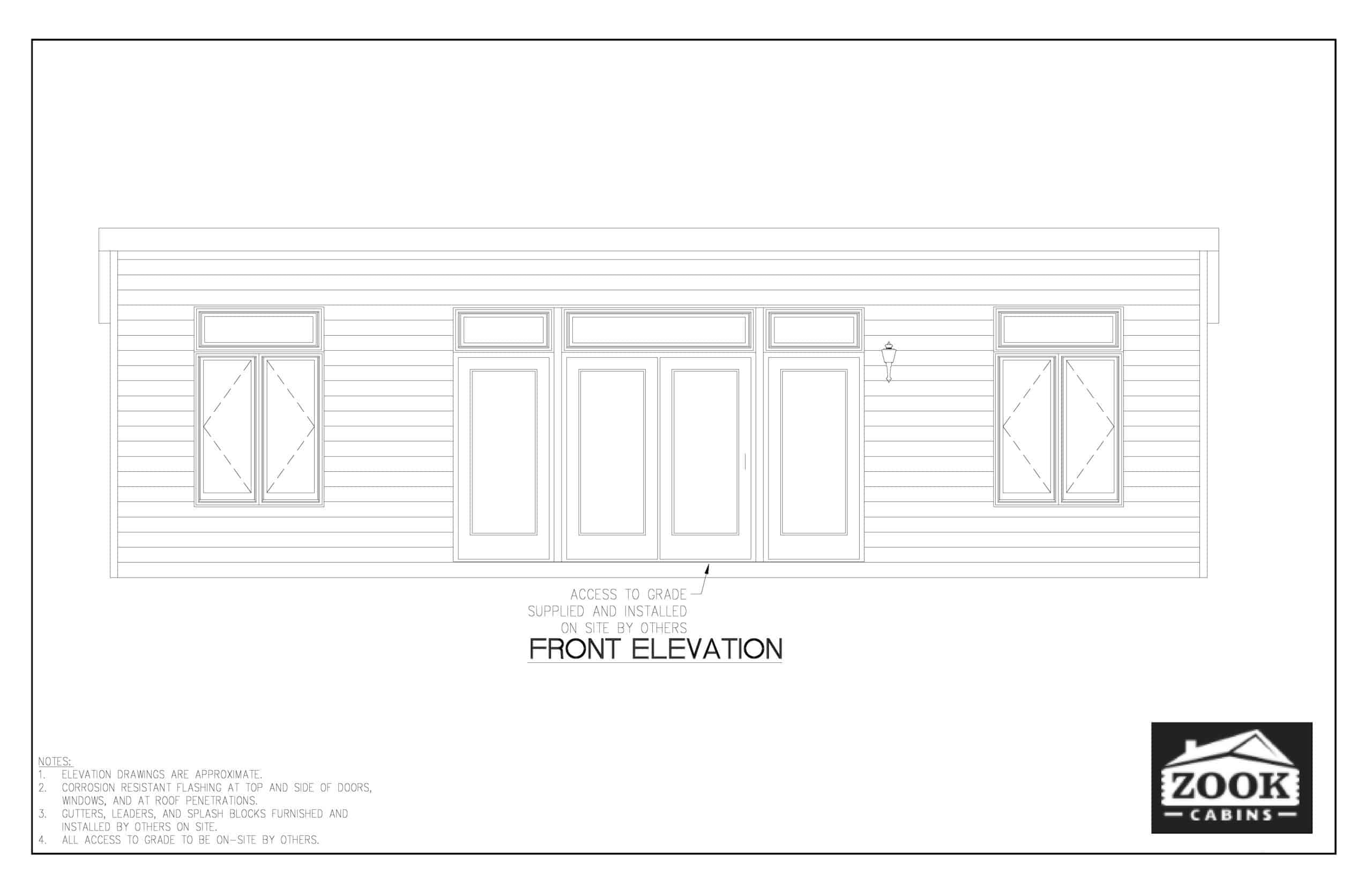

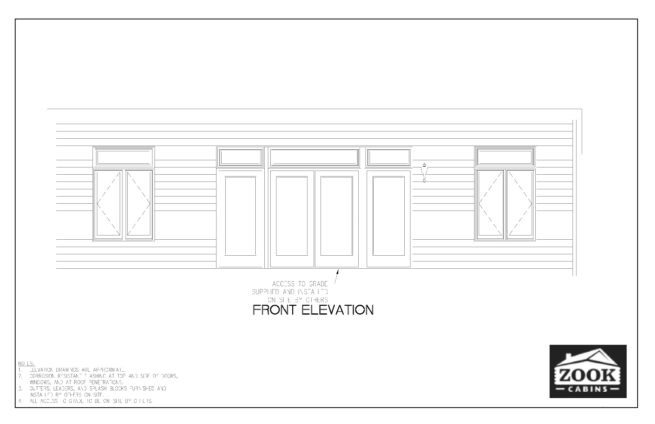

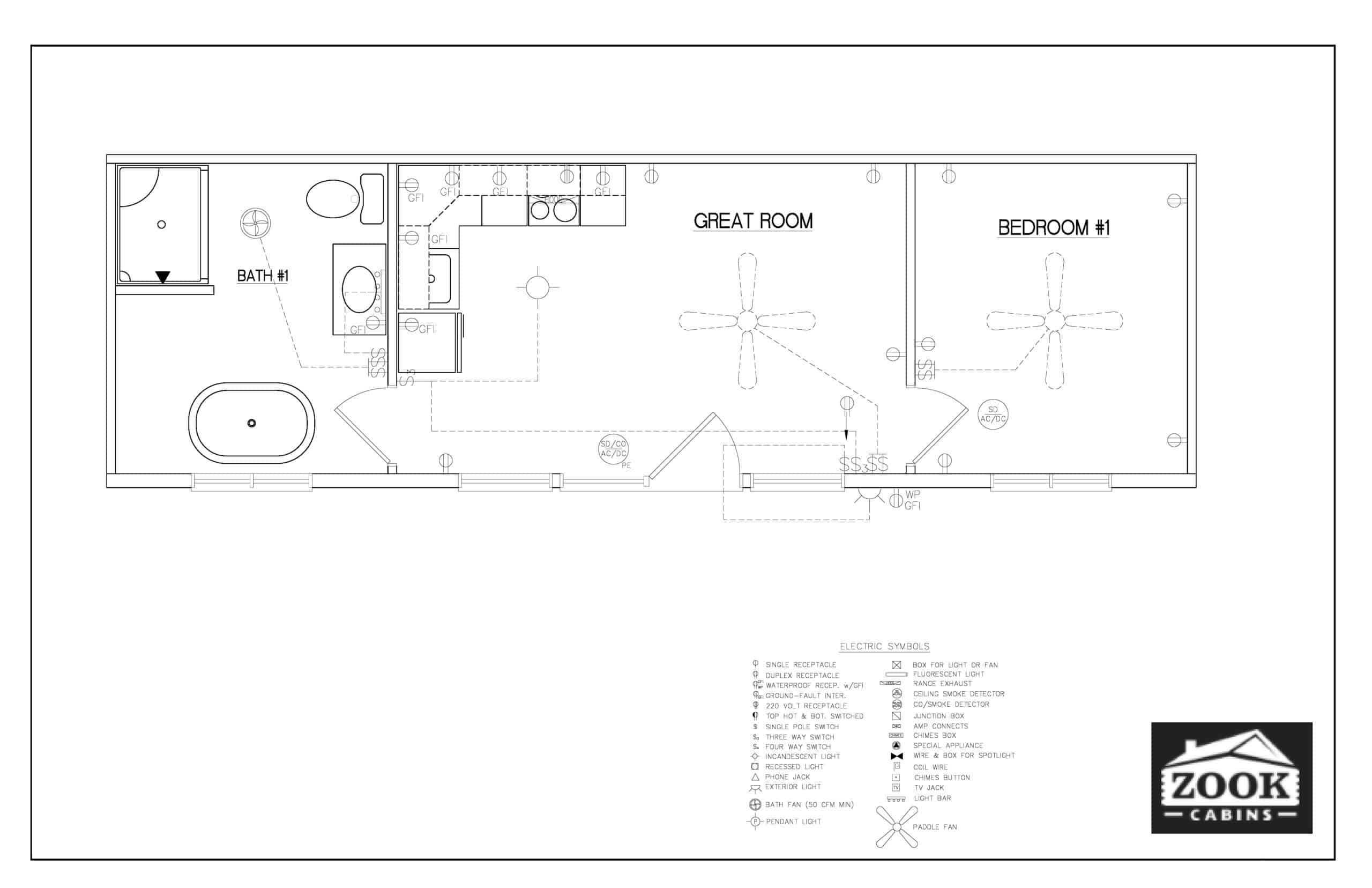

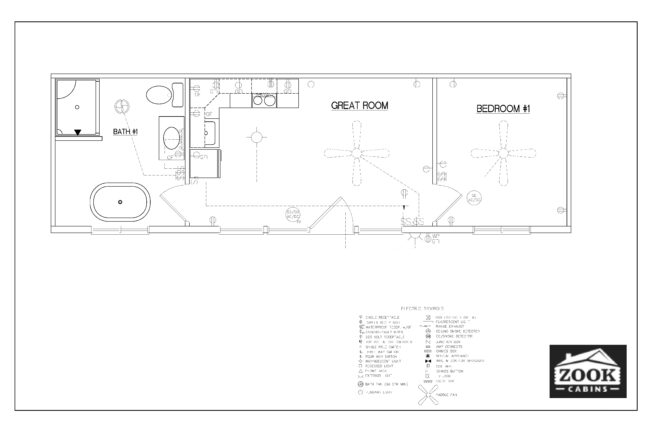

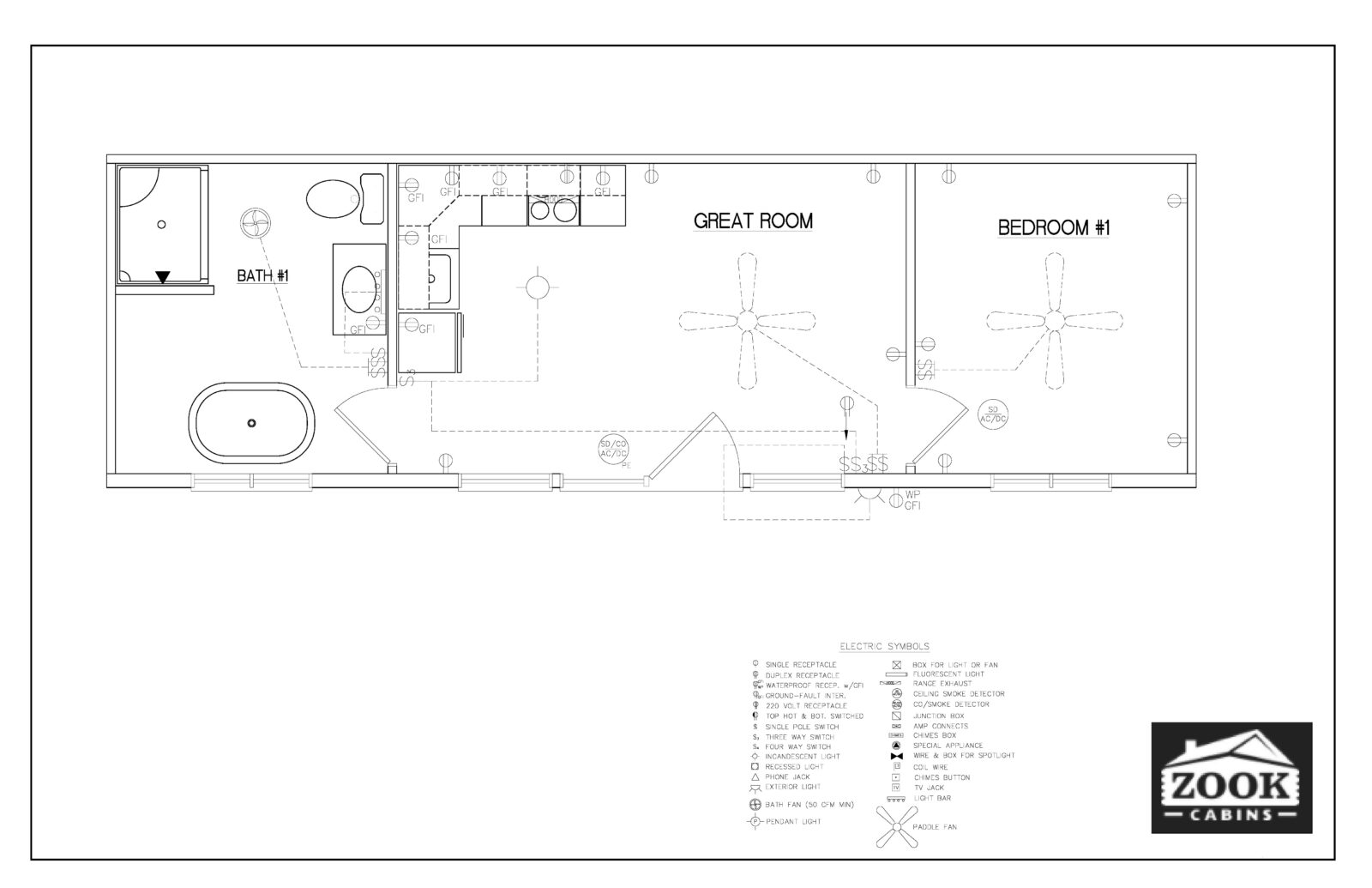

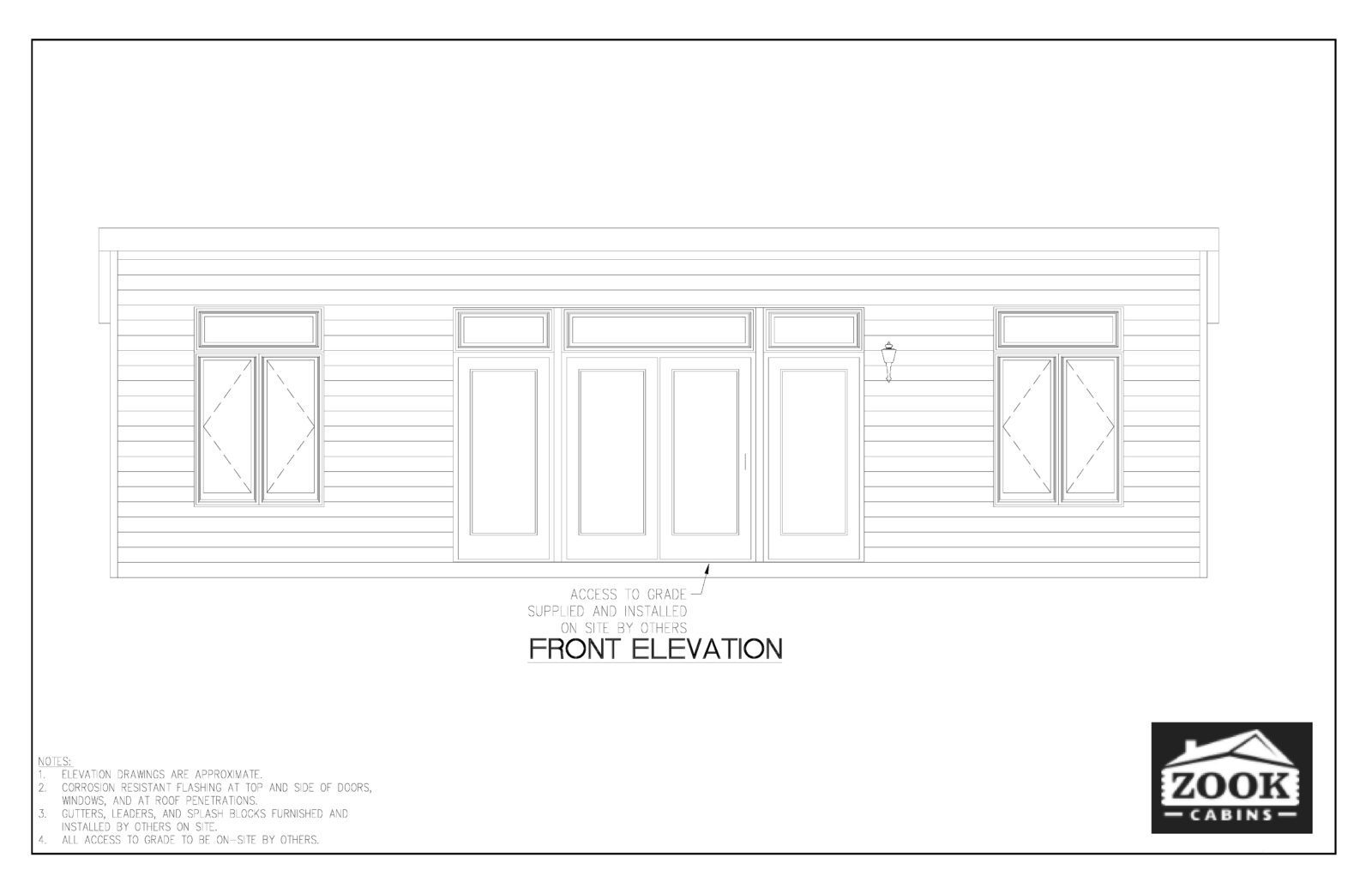

Alpine Park Model RV Floor Plan

The simple, but luxurious, floor plan on the Alpine provides you with a master bedroom, a great room that includes a kitchen and a living area, plus you get a large bathroom with a standalone bathtub.

You can find more details and the floor plans below.

Alpine 1
11 × 36

400 finished sq.ft. · 1 Bedroom(s) · 1 Bathroom(s) · Side  Porch

Download PDF
Get Started

Our Pricing Includes Delivery!

Delivery, set-up, and crane charges are included. All floor plans are customizable, so let your cabin project manager know what personal touch you would like to incorporate. With Zook Cabins you won’t have any worries…just a lot more time enjoying your new modular log cabin home and making new memories for years to come!

Get Instant Pricing

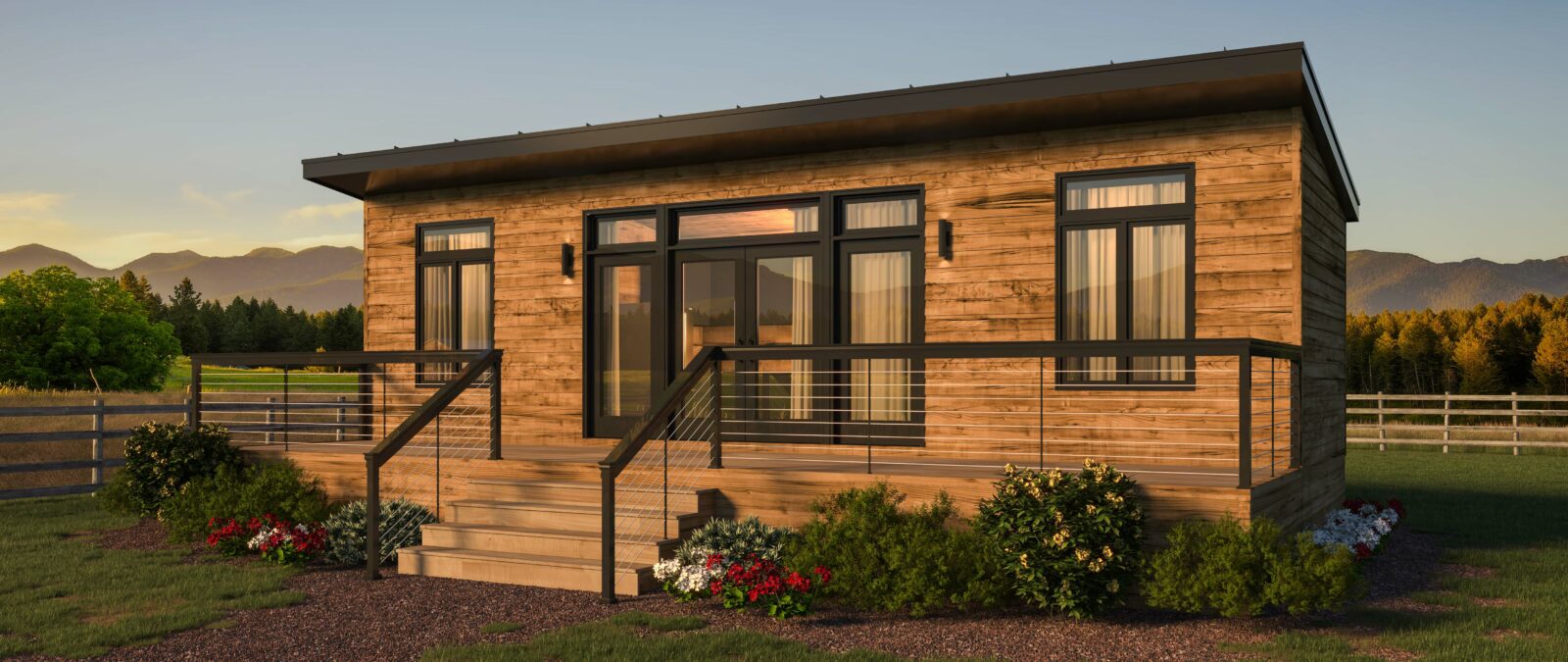

exterior of Alpine Park Model RV

Exterior Of The Alpine Park Model RV

This park model RV measures in at 11 ft by 36 ft and while not built for size, this tiny home packs a punch well beyond its dimensions. Starting from the top, the Alpine Park Model is protected by a black 28 Gauge Metal Roof that comes with a 40-year Warranty, ensuring your park model home is well protected for years to come. Plus the 3 ft overhang on the front of the park model RV provides that little bit of extra protection from the elements.

The Great Room Of The Alpine Park Model RV

Untitled Artwork

As you step into this Park Model, through the french door, you’ll enter the main living space of this gorgeous park model home. The front wall of this park model has both glass doors and full length windows on either side of the door, making the room bright and inviting. The beautiful L-shaped kitchen features custom built cabinetry, quartz countertops, a 10 cu.ft. refrigerator and a stove. On the other side of the room is the living area giving you plenty of space for a sofa and your favorite chair. And with the view out of the front windows, the living room will quickly become your favorite place to start your day!

The Alpine Park Model RV Bedroom & Bath

Alpine Park Model RV Bathroom with soaking tub

The gorgeous master bedroom has plenty of space for a large bed, and features a large window that fills the room with lots of natural light. On the other end of this luxurious park model is the bathroom. The stunning feature of the bath is definitely the large stand-alone bathtub. But combine that with the floor-to-ceiling tiled shower and the matte black finish on tub and fixtures and you’ve got an incredible room. And the best part is the view you get while enjoying a nice hot bath!
